Todos los productos

Longer, wider strap on toggle lighted switches provides 40% more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call backs due to job site breakage. Patented built-in wire looper for pre-looping. Three-way switches feature additional push-in common termination for Feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire.

Side wire terminals accept up to number 10 solid or stranded wire. Rated for fluorescent lighting fixtures typical in commercial applications. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Ground screw terminal standard. Meets all UL 20 requirements, Federal specifications WS896.

Eaton Toggle Switch, 120 V, 15 A, Number of Positions: 3, Terminal Type: Push-In, Actuator Type: Cam, Temperature Rating: -20 to 60 deg C, Wall Mounting, Housing Material: Polycarbonate, Ivory, Dimensions: 3.28 in L x 1.31 in W x 0.88 in H

Meets all UL 20 requirements. For direct connection to aluminum or copper wire. Longer, wider strap provides 40 percent more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Side wire terminals accept up to #10 solid or stranded wire. Terminal screws are backed out-ready for wiring. Combination slot/Phillips head mounting and terminal screws. 15 amp, 120 volt. UL Listed.

Jandorf Switch, 125/277 V, 15/24 A, Wattage Rating: 2 hp, Number of Poles: 3, Switch Operation: On/Off/On, Contact Configuration: TPDT, Terminal Type: Tab, Actuator Type: Toggle

Jandorf Switch, 120/240 V, 10/15 A, Number of Poles: 1, Switch Operation: On/Off, Contact Configuration: SPST, Terminal Type: Screw, Actuator Type: Toggle

Jandorf Switch, 125/277 V, 15/20 A, Wattage Rating: 2 hp, Number of Poles: 1, Switch Operation: On/Off/On, Contact Configuration: SPDT, Terminal Type: Screw, Actuator Type: Toggle

Longer, wider strap on toggle switches provides 40% more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call backs due to job site breakage. Patented built-in wire looper for pre-looping. Three-way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted, Phillips and Robertson-head tools for installations in both the U.S. and Canada.

Small toggle switch blends with standard grade toggles. Larger contacts, backwire clamps on the side terminals. Side wire terminals accept up to number 10 solid wire. Back wire terminal accepts 12 ga or 14 ga wire. Heavy-duty cam action mechanism. Long, broad steel mounting strap, zinc-plated for corrosion resistance. Built-in wire stripper for #12 and #14 wire. Ground screw terminal, stippled line and ground contacts standard. Tri-combo head mounting and terminal screws. 15 A, 120/277 V. cULus listed, NOM certified.

Jandorf Switch, 125/250 V, 10/20 A, Wattage Rating: 0.75 hp, Number of Poles: 1, Switch Operation: On/Off/On, Contact Configuration: SPDT, Terminal Type: Screw, Actuator Type: Toggle

Jandorf Switch, 125/250 V, 3/6 A, Number of Poles: 1, Switch Operation: On/Off, Contact Configuration: SPST, Terminal Type: Screw, Actuator Type: Toggle

Jandorf Switch, 125/277 V, 15/20 A, Wattage Rating: 2 hp, Number of Poles: 2, Switch Operation: On/Off/On, Contact Configuration: DPDT, Terminal Type: Tab, Actuator Type: Toggle

Jandorf Switch, 125/277 V, 15/20 A, Wattage Rating: 2 hp, Number of Poles: 2, Switch Operation: On/Off/On, Contact Configuration: DPDT, Terminal Type: Screw, Actuator Type: Toggle

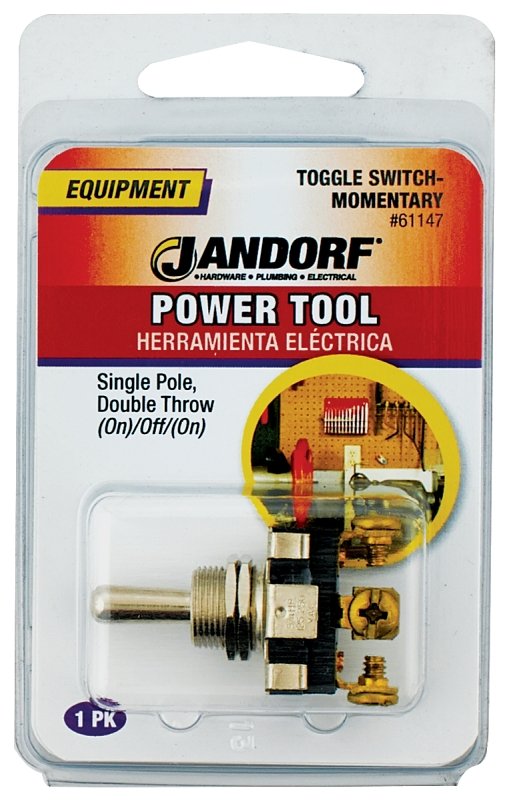

Jandorf Switch, 12 VDC, 20 A, Number of Poles: 1, Switch Operation: On/Off/On, Contact Configuration: SPDT, Terminal Type: Tab, Actuator Type: Toggle, Black

Single pole side wire switch. Grounding terminal screw standard. 15 A, 120/277 V rating. 0.050 in THK steel mounting strap zinc-plated for corrosion resistance. Terminal screws backed out-ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Pilot light rating of 1/25 W - 120 V, may be wired to indicate power "on" or power "off". Combination slot/Phillips head mounting and terminal screws.

For direct connection to aluminum or copper wire. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Side wire terminals accept up to #10 solid or stranded wire. Terminal screws are backed out-ready for wiring. Combination slot/Phillips head mounting and terminal screws. 15 A, 120 V. UL listed.

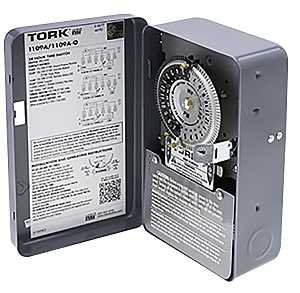

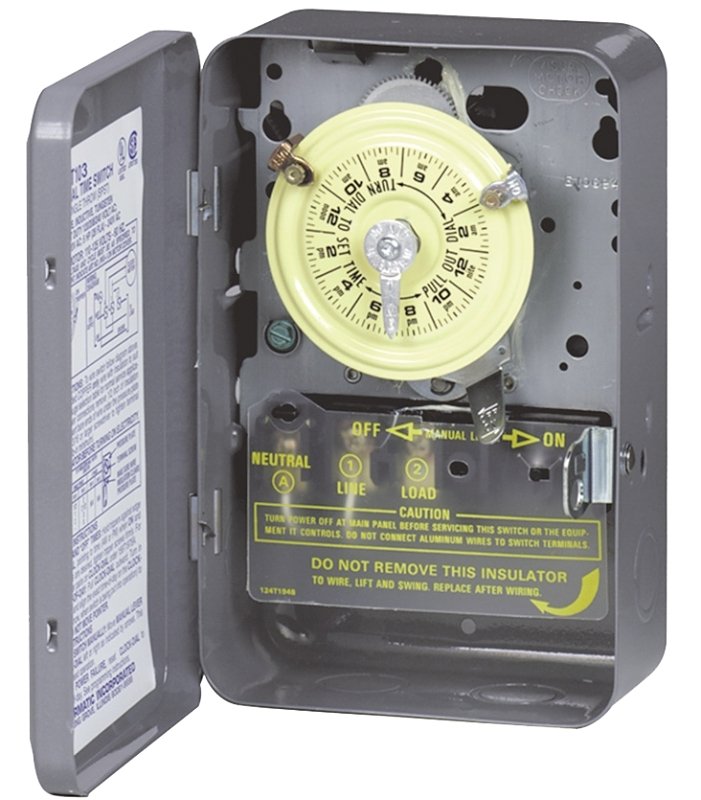

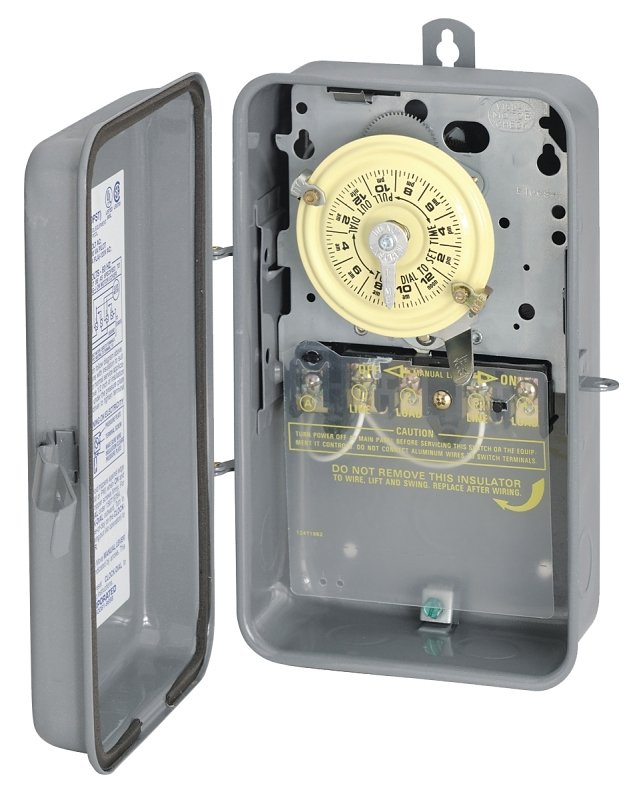

The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 a per pole and allow for up to 12 On/Off operations per day. A manual override switch provides added convenience.

The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 On/Off operations per day. A manual override switch provides added convenience.

The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 a per pole and allow for up to 12 On/Off operations per day. A manual override switch provides added convenience.

Tork Digital Timer, Wi-Fi, 120/277 VAC, 40 A, Frequency Rating: 60 Hz, Number of Poles: 2, Contact Configuration: DPDT, Cycle Time: 7 days, Time Setting: 1 min to 23 hr 59 min, IP Rating: NEMA 3R, Installation Type: Screw, Temperature Rating: -31 to 116 deg F, Plastic

Tork 1100 Timer Switch, 40 A, 120 to 277 VAC, Wattage Rating: 3 W, Time Setting: 24 hr, Contact Rating: 120/208 to 277 VAC, 60 Hz, 40 A, Contact Configuration: DPST, Conductor Size: #8 to #14 AWG
