Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Single phase, 4 spaces/4 circuits, 120/240 V. 10,000 AIR. Factory installed main breaker. Additional spaces allow connection of external circuits such as yard lights. One 2 in HS200 hub included. Normally used as a means of disconnecting power to a mobile home panel, but also used as a disconnect for houses. Aluminum bus bar insulates and secures interior. Drop hinge door. Gray enamel finish. Pole mountable. UL listed for use as service entrance equipment.

Single phase, 2 spaces/4 circuits, 120/240 V. 10,000 AIR. Factory installed main breaker. Additional spaces allow connection of external circuits such as yard lights. One 1-1/4 in HS125 hub included. Normally used as a means of disconnecting power to a mobile home panel, but also used as a disconnect for houses. Aluminum bus bar insulates and secures interior. Gray enamel finish. Pole mountable. UL listed for use as service entrance equipment.

A loadcenter is called a breaker box, electrical box or even a fuse box. The main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Not only does the loadcenter distribute power, it also provides protection.

Eaton Load Center, 120/240 VAC, 200 A, 1 ph, 30 Spaces, 60 Pole, 60 Circuits, Main Breaker, Plug-On Neutral, Type BR Breaker/Load Center, 25 kAIC Interrupt, #2 to 300 kcmil Cable, 3-Wire Wiring Configuration, Bus Bar Material: Aluminum, Cover/Lid Type: Flush, Surface, NEMA 1 Enclosure, Metal, Includes: Cover

Eaton Load Center, 120/240 V, 200 A, Number of Phases: 1, Number of Spaces: 30, Number of Poles: 60, Number of Circuits: 60, Breaker/Load Center Type: Main Breaker, Plug-On Neutral, Cable Size: #2-300 kcmil, Bus Bar Material: Aluminum, Bus Bar Rating: 200 A, Enclosure Type: NEMA 3R, Flush, Surface Mounting

Eaton Load Center, 120/240 VAC, 200 A, Number of Phases: 1, Number of Spaces: 30, Number of Poles: 1, Number of Circuits: 60, Breaker/Load Center Type: Main Breaker, Plug-On Neutral, Type BR, Interrupt Rating: 22 kAIC, Cable Size: #6 to 2/0 AWG, Bus Bar Material: Aluminum, Enclosure Type: NEMA 1

Eaton Indoor Load Center, 120/240 VAC, 200 A, Number of Phases: 1, Number of Spaces: 20, Number of Poles: 40, Number of Circuits: 40, Breaker/Load Center Type: Main Breaker, Interrupt Rating: 25 kA, Wiring Configuration: 3-Wire, Bus Bar Material: Aluminum, Enclosure Type: NEMA 1, Bolt Mounting

Eaton Load Center, 120/240 V, 200 A, Number of Phases: 1, Number of Spaces: 20, Number of Poles: 40, Number of Circuits: 40, Breaker/Load Center Type: Main Breaker, Plug-On Neutral, Cable Size: #2-300 kcmil, Bus Bar Material: Aluminum, Bus Bar Rating: 200 A, Enclosure Type: NEMA 3R, Flush, Surface Mounting

Eaton Load Center, 120/240 VAC, 100 A, Number of Phases: 1, Number of Spaces: 12, Number of Poles: 24, Number of Circuits: 24, Breaker/Load Center Type: Main Breaker, Plug-On Neutral, Type BR, Interrupt Rating: 10 kAIC, Cable Size: #4 to 1/0 AWG, Wiring Configuration: 3-Wire, Bus Bar Material: Aluminum, Enclosure Type: NEMA 1, Flush, Surface Mounting, Includes: Cover

Welded sheet steel. Single phase, 3-wire, split neutral, 12 spaces/12 circuit, 120/240 V. 22,000 AIR factory installed main breaker. Comes with a ground bar and a combination cover for added protection. Shielded copper bus bar. 2-1/2 in knockouts located on the top and bottom. Accepts QO circuit breakers and is compatible with overhead and underground service feeds. UL listed.

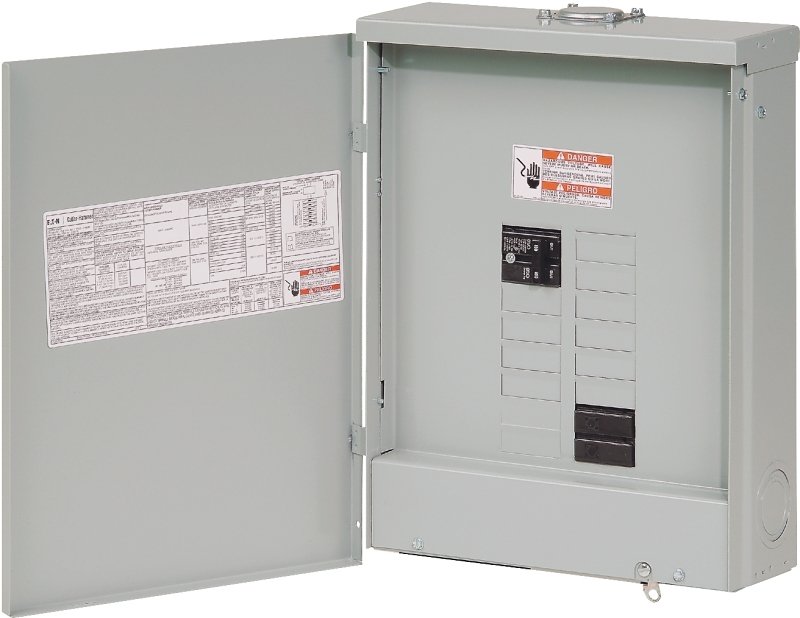

Eaton Load Center, 120/240 V, 100 A, Number of Phases: 1, Number of Spaces: 10, Number of Poles: 20, Number of Circuits: 20, Breaker/Load Center Type: Main Breaker, Plug-On Neutral, Cable Size: #4-1/0 AWG, Bus Bar Material: Aluminum, Bus Bar Rating: 100 A, Enclosure Type: NEMA 3R, Flush, Surface Mounting

Main lug outdoor load center, 125 A 8 space/16 circuit. Convertible to a main breaker. Single-phase load center. Overhead or underground feed options. Plated aluminum bus bar. UL listed.

Combination meter socket. Surface mount, overhead service entrance only. 100 A maximum, 100 A main breaker installed. Single phase, 3-wire. 10 spaces, 20 circuits, 22,000 AIC rating. NEMA type 3R outdoor enclosure. Uses RX style hub, not included.

Combination meter socket. MBK200 main breaker. 20 spaces, 40 circuits, ring type meter cover. 36 x 13.9 x 4.9 in.

Standard meter center, all-in-one, 1 in BR branch breaker type, EUSERC, 25 KAIC, 12/24 distribution, BR2100 main breaker included. Bottom and top feed, ring style, UG/UG service. Rainproof enclosure. 5-3/8 in D x 14-7/16 in W x 23-7/8 in H.

A device that may include a meter socket, main breaker and load center section within the same enclosure.

The GE Power Mark Gold 200 Amp 4-Space 8-Circuit Main Breaker Meter Socket Outdoor Load Center installs easily and delivers dependable performance. This load center is ideal for overhead or underground applications and provides reliable rust resistance. Featuring compatibility with GFCI, AFCI and 1/2 in. THQP circuit breakers, this unit possess versatility for your electrical metering needs.14 in x 28 in x 4-1/2 in UL listed. Meets EUSERC requirements.

Combination meter socket. 200 A main breaker installed, Single phase, 3-wire, Insta-Wire™ neutrals. Eight spaces, 16 circuits. 120/240 V. 22,000 AIC rating. Four jaws. Tin-plated copper bus bars. NEMA type 3R outdoor enclosure. Overhead or underground feed. Feed thru lugs provided. Key hole shaped mounting holes for easy hanging. Deadfront pull ring and side hinge door. Captive dead front screw. RX style hub sold separately. UL listed.

MBT48B200BTS - Eaton resi meter breaker, All-in-ones, 200A, C, Aluminum, NEMA 3R, Bottom and top, #6-350 kcm22 kAIC, #6-350 kcmCSR2200, Surface mounting, 8, Four-jaw, 1, 4, Single-phase, Ringless, Used with BR breakers, 120/240 Vac

Combination meter socket. 200 A main breaker installed, Single phase, 3-wire, Insta-Wire™ neutrals. Four spaces and eight circuits. 120/240 V. 22,000 AIC rating. Four jaws. Tin-plated copper bus bars. NEMA type 3R outdoor enclosure. Overhead or underground feed. Feed thru lugs provided. Key hole shaped mounting holes for easy hanging. Deadfront pull ring and side hinge door. Captive dead front screw. RX style hub sold separately. UL listed.
