POST BASE CONCEALED ZMAX 4X4IN

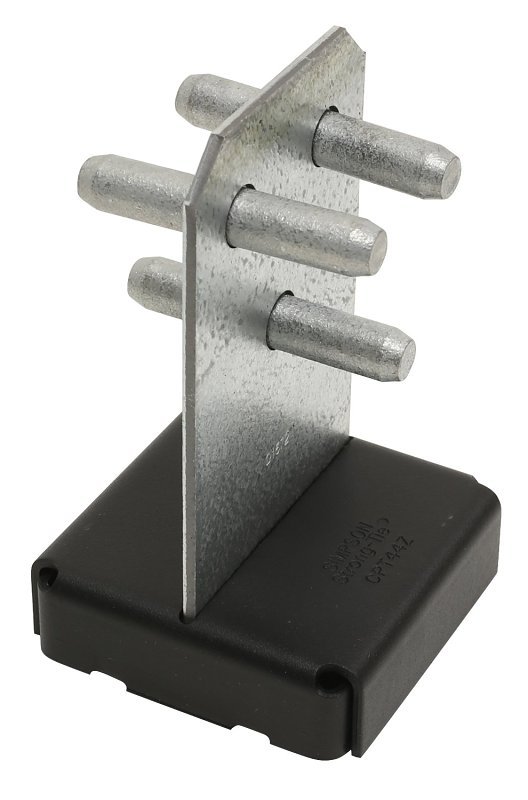

The CPTZ concealed post-base provides a clean, concealed look while providing a 1 in stand-off height above concrete. The 1 in stand-off reduces the potential for decay at the post-end and satisfies code requirements for posts that are exposed to weather, water splash or in basements. It is part of a system of concealed connectors that includes the CBTZ and CJT.
Ships from Warehouse
$ 49.99 $ 49.99

  • Store Availability
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Features
  • The 1 in stand-off height is code-required when supporting permanent structures that are exposed to weather or water splash, or in basements
  • The stand-off reduces the potential for decay at post or column ends
  • The anchorage for the CPTZ can be either cast-in-place or retrofit with adhesive or mechanical anchors
  • ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • The CPTZ is tested and load-rated for uplift, download and lateral load
  • Simpson Strong-Tie® saves installers time by providing all the necessary components to make the post connection in one box (anchors not included)
Specifications
Brand SIMPSON STRONG-TIE
Model # CPT44Z
Length 8.25 in
Width 7.0 in
Height 16.0 in
Weight 2.17 lbs
UPC 707392217404
SKU 8832867
