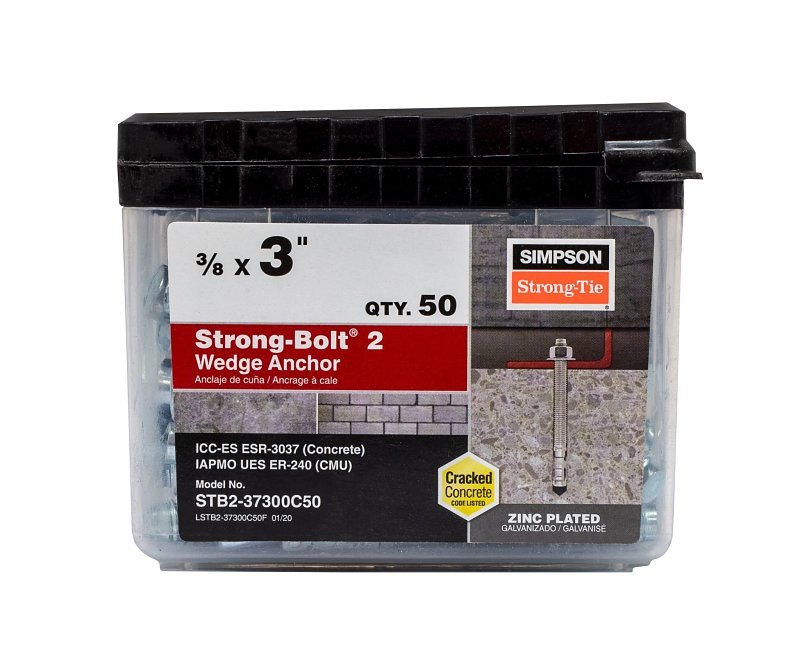

WEDGE ANCHOR ZINC 3/8X3IN

Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.
Ships from Warehouse
$ 25.99 $ 25.99

  • Store Availability
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Features
  • Chamfered top designed to prevent mushrooming during installation
  • Qualified for static and seismic loading conditions (seismic design categories A through F)
  • Suitable for horizontal, vertical and overhead applications
  • Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete-over-steel deck thickness of 2-1/2 in and 3-1/4 in
  • Tested per ACI355.2 and AC193
  • Made from zinc plated carbon steel
Specifications
Brand SIMPSON STRONG-TIE
Model # STB2-37300C50
Length 3.812 in
Width 2.812 in
Height 6.06 in
Weight 4.98 lbs
UPC 707392013174
SKU 8229478
