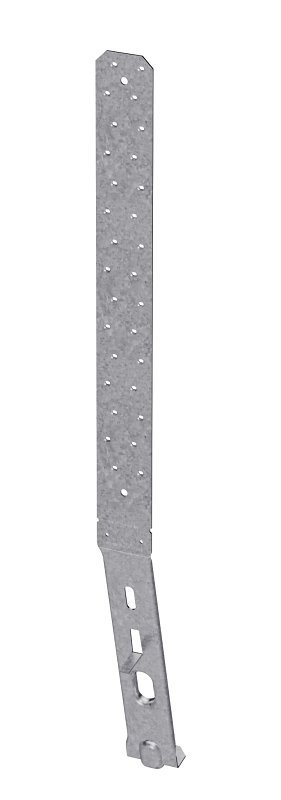

STRP-TIE HOLDOWN GALV 26-1/8IN

The STHD is an embedded strap-tie holdown offering high-loads in both wood and cold-formed steel construction. When installed on the forms with the StrapMate® strap holder or other holding device, the unique design of this cast-in-place strap-tie holdown delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement. This results in accurate positioning of the strap and reduced possibility of spalling.
Ships from Warehouse
$ 31.99 $ 31.99

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Features
  • The nailing pattern allows for nailing to the edges of double 2X's
  • Strap nail slots are countersunk to provide a lower nail head profile
  • The slots below the embedment line enable increased front-to-back concrete bond and help to reduce spalling
  • Galvanized (G90) for extra corrosion resistance
  • The fastener pattern allows for fastening to the edges of back-to-back studs
Specifications
Brand SIMPSON STRONG-TIE
Model # STHD14
Length 3.0 in
Width 4.986 in
Height 40.473 in
Weight 3.45 lbs
UPC 044315576003
SKU 8229353
