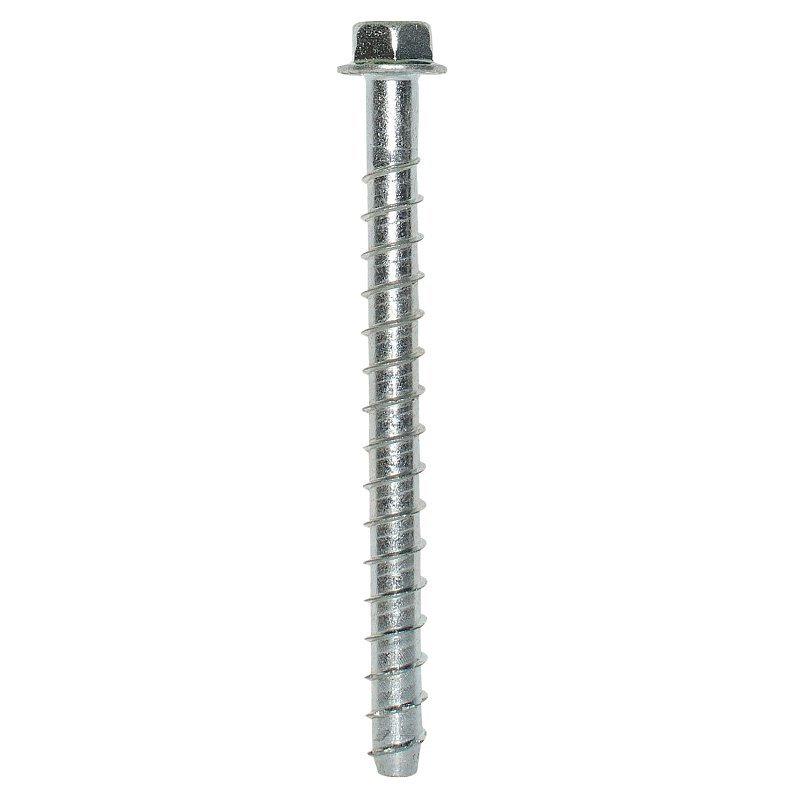

ANCHOR SCREW HD HEX 3/8 X 5IN

A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post-bases, seating and other holdown applications. The screw anchor is easy to remove when used in temporary applications such as bracing and formwork, or when a fixture needs to be relocated. The stainless steel Titen HD is the optimal choice for applications in corrosive or extreme environments such as salt water, or when chemical or corrosive solutions are present.
Ships from Warehouse
$ 3.99 $ 3.99

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Features
  • Qualified for static and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material
  • No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
  • Designed to install using standard-sized ANSI tolerance drill bits
  • Hex washer head requires no separate washer and provides a clean installed appearance
  • Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
  • Zinc-plated carbon steel anchor can be used for temporary exterior applications
Specifications
Brand SIMPSON STRONG-TIE
Model # THD37500HF1
Length 0.8 in
Width 0.8 in
Height 5.453 in
Weight 0.2 lbs
UPC 707392597148
SKU 7970320
