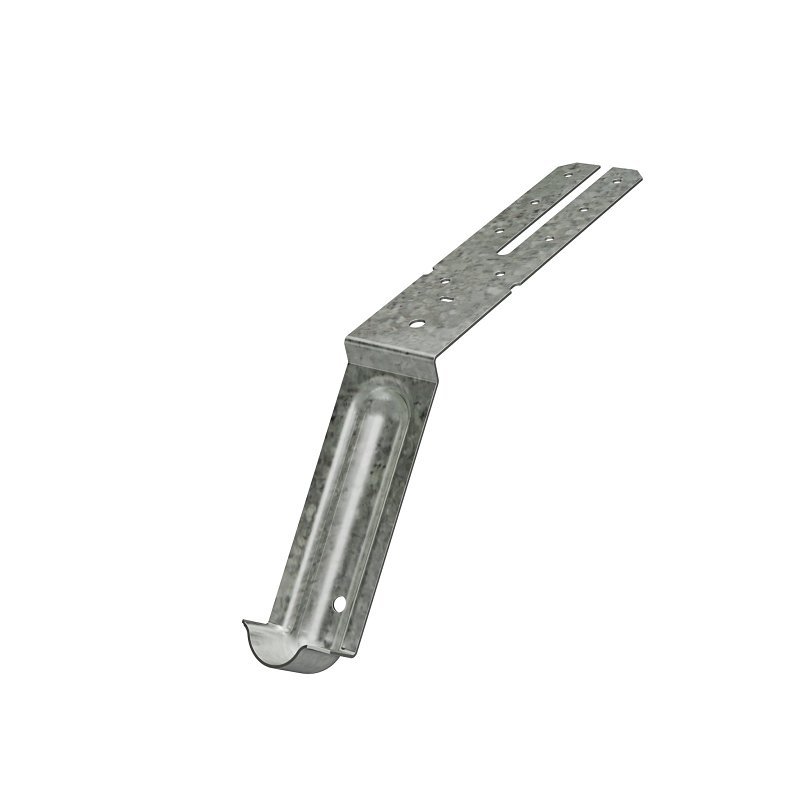

MUDSILL ANCHOR ZMAX 16GA

The MASB is a mudsill anchor designed specifically to anchor a mudsill to concrete block foundations or walls. The unique design eliminates problems associated with misplaced anchor bolts. The MASB easily installs into wet concrete-grouted CMU block for a time-saving alternative to anchor bolts.
Ships from Warehouse
$ 4.59 $ 4.59

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Features
  • Anchors mudsill to concrete block, poured walls or slab foundations
  • Fill CMU cell with concrete grout first, then place MASB into the grouted cell and adjust into position
  • Attach mudsill to anchor only after the concrete grout cures
  • Made from 16 ga steel
  • ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Offset design for use in concrete block applications
  • One-piece design, so there are no nuts and washers to lose
  • Unique design eliminates concerns about stud placement
Specifications
Brand SIMPSON STRONG-TIE
Model # MASBZ
Length 8.0 in
Width 20.625 in
Height 9.0 in
Weight 0.34 lbs
UPC 707392988908
SKU 7496664
