MUDSILL ANCHOR ZMAX 16GA

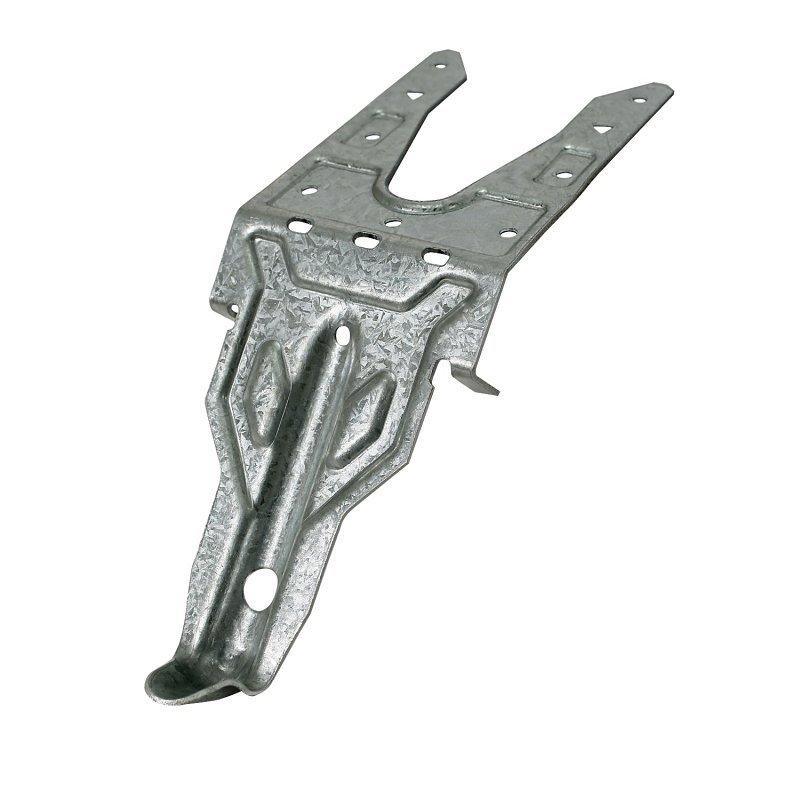

The MASA is a mudsill anchor that provides a time-saving alternative to anchor bolts. This mudsill anchor eliminates the need for 3 in square plate washers for seismic design and, in some cases, has allowable loads that meet or exceed the parallel and perpendicular-to-plate shear loads of other cast-in-place anchors. The MASA is ideal for installation on standard forms and is code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC® and IRC®.
Ships from Warehouse
$ 4.79 $ 4.79

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Features
  • Attaches easily to the concrete form for quick installation
  • Lays flat on the form board so there is no anchor bolt to finish around
  • No labor costs involved in drilling plates and aligning holes
  • Flat design eliminates chances of modification in prefabricated walls
  • Eliminates the need to notch studs due the anchor bolts being placed where it will interfere
  • Reduces the chance of having to retrofit anchors because of missing or misplaced anchor bolts
  • Minimum MASA end distance is 4 in and minimum center-to-center spacing is 8 in for full load
  • Made from 16 ga steel
  • ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
Specifications
Brand SIMPSON STRONG-TIE
Model # MASAZ
Length 3.0 in
Width 8.188 in
Height 3.281 in
Weight 0.32 lbs
UPC 707392789703
SKU 7496649
