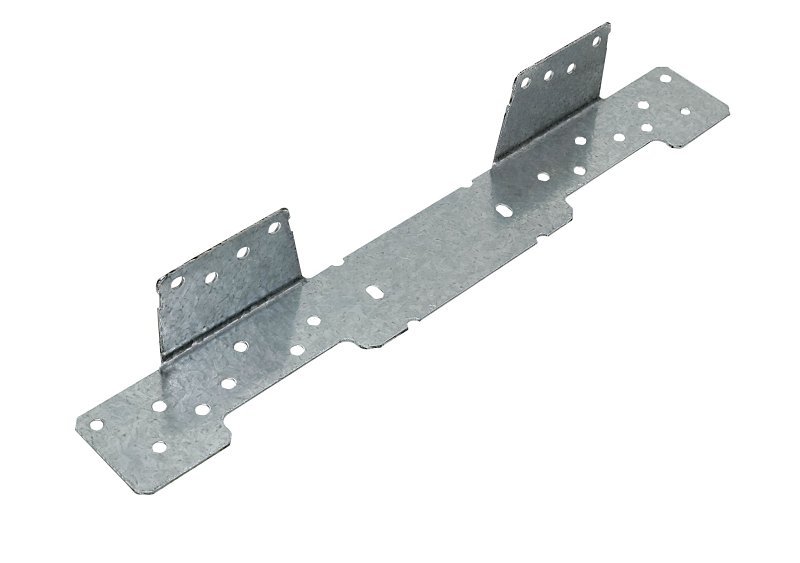

STRINGER CONNECTOR ADJ ZMAX

The LSC adjustable stair-stringer connector offers a versatile, concealed connection between the stair-stringer and the carrying header or rim board while replacing costly framing. Field slopeable to all common stair-stringer pitches, the LSC connector is suitable for either solid or notched stringers.
Ships from Warehouse
$ 3.99 $ 3.99

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Features
  • Replaces additional framing and toe-nailing
  • Interchangeable for left or right applications
  • LSCZ features a ZMAX® coating for additional corrosion protection, suitable for interior and some exterior applications
  • Suitable for most installations on nominal 2 x 10 or 2 x 12 header/rim board
  • ZMAX® galvanization offers extra corrosion resistance, suitable for interior and some exterior applications
  • May be installed flush with the top of the carrying member or lower on the face
Specifications
Brand SIMPSON STRONG-TIE
Model # LSCZ
Length 8.5 in
Width 4.0 in
Height 10.0 in
Weight 0.3 lbs
UPC 707392273103
SKU 7495880
