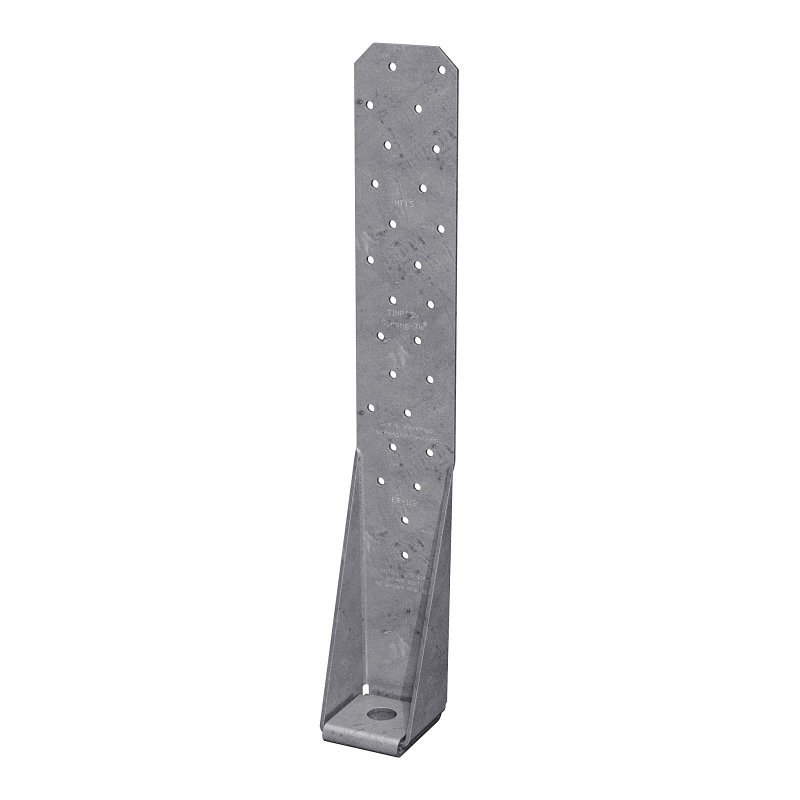

Features
- Ideal for retrofit or new construction projects
- Can be installed with cast-in-place or post-installed anchor bolts
- Four-ply formed steel provides increased tension capacity
- Anchor bolt washers not required
- Galvanized (G90) for extra corrosion resistance
- Optimized nailing pattern for better performance and less deflection
- When using with unreinforced concrete masonry, 3/4 in post-installed anchor bolts are commonly used
- When installing over wood structural panel sheathing, use a 2-1/2 in long fastener minimum
Specifications
| Brand | SIMPSON STRONG-TIE |
|---|---|
| Model # | HTT5 |
| Length | 9.5 in |
| Width | 4.056 in |
| Height | 20.075 in |
| Weight | 2.17 lbs |
| UPC | 707392617907 |
| SKU | 7494768 |
