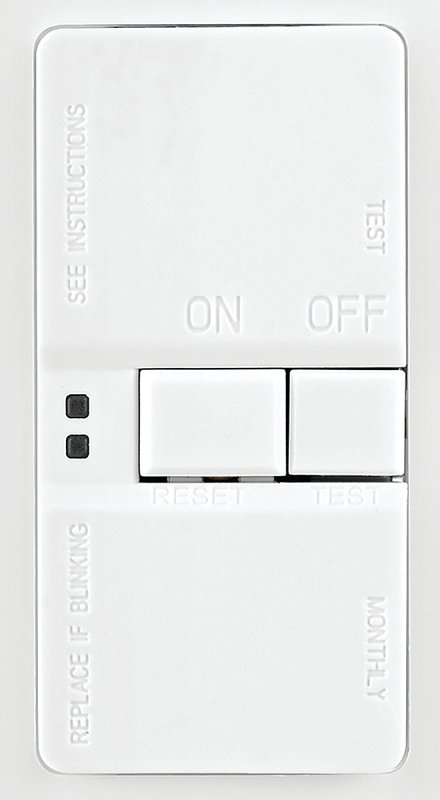

RCPT GFCI BLNKFACE 20A/120V WH

Dead-front/blank face GFCI is UL listed, fully compliant with all latest UL 943 (4th edition) Class A GFCI, UL 498 requirements and UL 508 for motor control switch horsepower rating, including the latest self-testing requirements. GFCI lockout function protects from miswired line a load connections and GFCI circuitry damage. Compact design provides maximum wiring room in grounded box applications. Device and wallplate mounting screws are captive, speeding installation time. Includes standard size unbreakable wallplate.
Ships from Warehouse
$ 39.99 $ 39.99

  • Store Availability
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Features
  • Visual indicator lights give quick notification of a tripped or "end of life" condition
  • Automatically self tests periodically to ensure GFCI protection
  • Rugged construction provides unsurpassed chemical and impact resistance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
  • Ground termination with back wire clamp provides secure wiring and reduces installation time
  • Line side terminals are backed out and staked for fast installation
  • Horizontal test/reset button alignment provides larger unobstructed area
  • Tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or stranded wire
  • When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
Specifications
Brand EATON WIRING DEVICES
Model # SGFD20W
Length 6.0 in
Width 5.0 in
Height 13.4 in
Weight 0.36 lbs
UPC 032664750069
SKU 7335847
