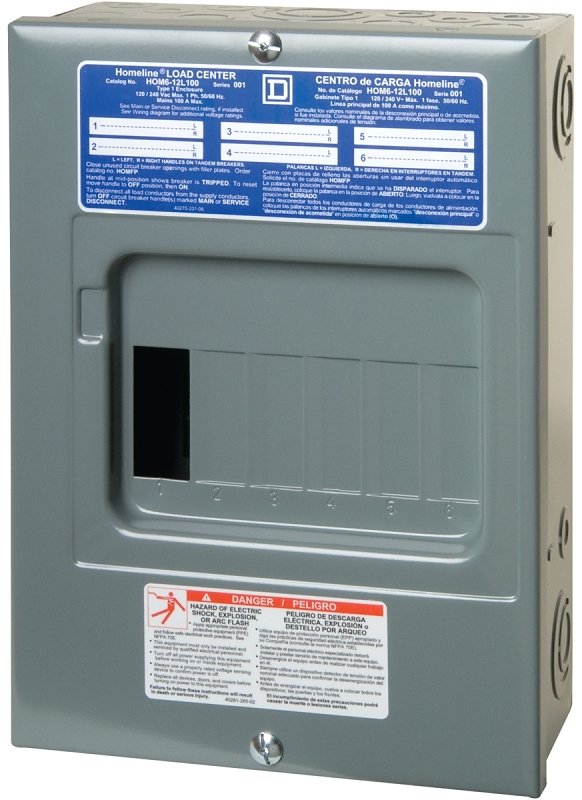

LOADCNTR MAINLUG HOM INDR 100A

Main lug indoor load center, 100 A, 6 space/12 circuit. NEMA type 1 enclosure. Single phase, 3-wire, solid neutral. Expandable load center capacity with the use of tandem or quad breakers. CSA approved for vertical, horizontal or inverted mounting. Accepts aluminum or copper conductors. Approved to only accept Canadian Homeline breakers.
In Stock - Paullina
$ 35.99 $ 35.99

  • Store Availability
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Features
  • Accommodates plug-on secondary surge arrestor
  • Overhead/underground feed simply by rotating the device before installing
  • Surface mount device cover without a door
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
Specifications
Brand SQUARE D
Model # HOM612L100SCP
Length 10.52 in
Width 4.19 in
Height 14.88 in
Weight 7.65 lbs
UPC 047569071232
SKU 6719793

Specifications

Store Availability In Stock Locally
