Features

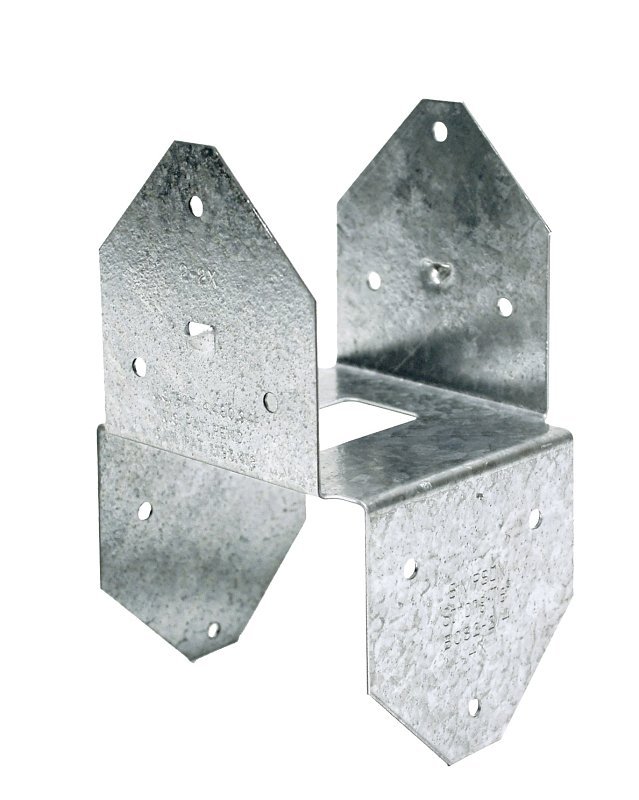

- Provides a positive connection for a post to a wood deck
- Stronger than angled nailing or screw fastening
- Reduces the chance of the post splitting and eliminates nailing into end grain
- Not recommended for non top-supported installations (such as fences or unbraced carports)
- ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Opposing flanges provide increased lateral resistance
- Sized specifically for multi-2X widths
- Do not install bolts into pilot holes
- Install dome nails on beam; drive nails at an angle through the beam into the post below to achieve the table loads
Specifications
| Brand | SIMPSON STRONG-TIE |
|---|---|
| Model # | BCS2-2/4Z |
| Length | 3.659 in |
| Width | 3.526 in |
| Height | 5.798 in |
| Weight | 0.54 lbs |
| UPC | 707392380504 |
| SKU | 3238052 |
