Features

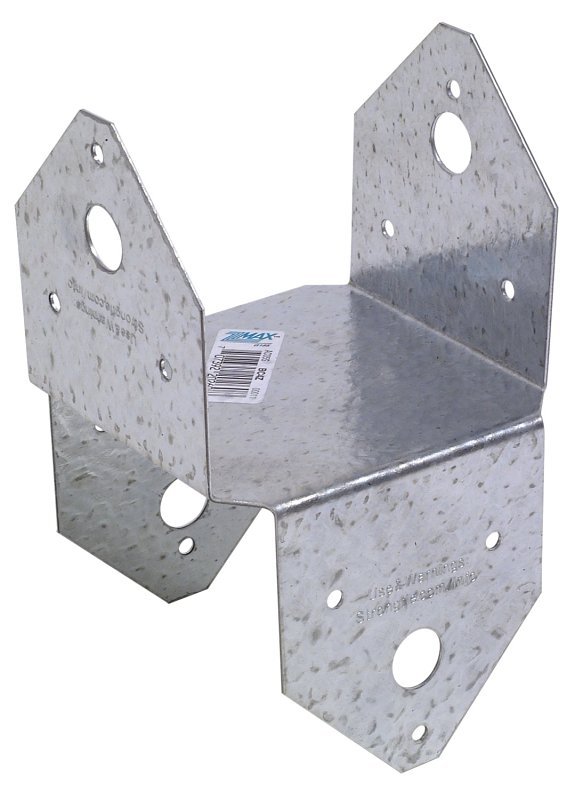

- Provides a positive connection for a post to a wood deck
- Stronger than angled nailing or screw fastening
- Reduces the chance of the post splitting and eliminates nailing into end grain
- Not recommended for non top-supported installations (such as fences or unbraced carports)
- ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Opposing flanges provide increased lateral resistance
- Attains full allowable load using either common nail or pneumatic nail sizes
- Do not install bolts into pilot holes
- Install with 0.162 x 3-1/2 in nails or 0.162 x 2-1/2 in nails
Specifications
| Brand | SIMPSON STRONG-TIE |
|---|---|
| Model # | BC4Z-R |
| Length | 8.259 in |
| Width | 5.009 in |
| Height | 19.023 in |
| Weight | 0.56 lbs |
| UPC | 707392634775 |
| SKU | 3238003 |
